ACS CST Chambers

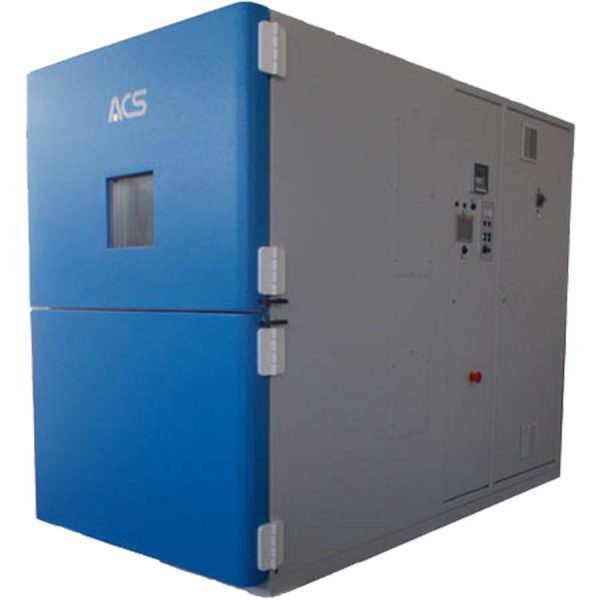

ACS CST Chambers

Category: Tags: , , , , ,

ACS complete line of thermal shock chambers includes either Air-to-Air or Liquid-to-Liquid models, designed for thermal shock tests on components or complete equipment by submitting them to rapid temperature changes automatically. They are suitable for Quality Control Laboratories or in Production plants for the screening of commercial and military components.

The extreme versatility of ACS chambers allows users to carry out a wide range of tests necessary to determine thermal characteristics under the effect of two alternating extreme temperatures. lt’s possible to offer standard or custom-designed models, either vertical, horizontal or “walk-in” types.

Their wide range of accessories, the large range of temperatures, the reliability of the mechanical cooling systems and the After-Sales Service Assistance contribute to make ACS chambers an essential factor for Quality control and production facilities.

Features

Features ACS CST Chambers

  • Carbon steel, industrial paint finish, exterior; stainless steel AISI 304 interior, 18/8.
  • Argon welded internal chamber. The internal structure is connected to the external structure by means of phenolic joints.
  • 2 ea. large full-light doors with soft double silicone gaskets and key-locks.
  • Internal ventilation realized by means of powerful propeller fans driven by external motors. They are provided with stainless steel shafts.
  • Cooling systems are driven by two cascade compressors complete with safety valves and thermal protections. Refrigerants: R449A for the first stage and R23 for the second stage.
  • Heating system by means of armored finned type electric heaters. They are protected by adjustable fail safe over-temperature switches.
  • Control and regulation by means of a PLC controller/programmer. Its control is based on PID feedback principle. Input/output is connected to Pt100 platinum variable resistance probes.
  • Thermal probes: Pt100 platinum probes with 100 ohms at 0°C as per DIN specifications.
  • Electric connections according to IEC specifications.
  • Blowers stop during the basket movement.
  • Microswitches on chamber doors.
  • Safety push button in case of emergency.
  • “Undercooling” or “overheating” operation modes available.

Options

Options ACS CST Chambers

Contact us for a complete list of all our accessories and options. Telephone: +3216 23 01 03 Email: info@akron.be

Technical Details

Technical Details ACS CST Chambers

ACS Thermal Shock Chambers Brochure

Request a quote

Request a quote ACS CST Chambers

    Fields marked with * are required





    Supplier

    Supplier ACS CST Chambers

    ACS partner Akron
