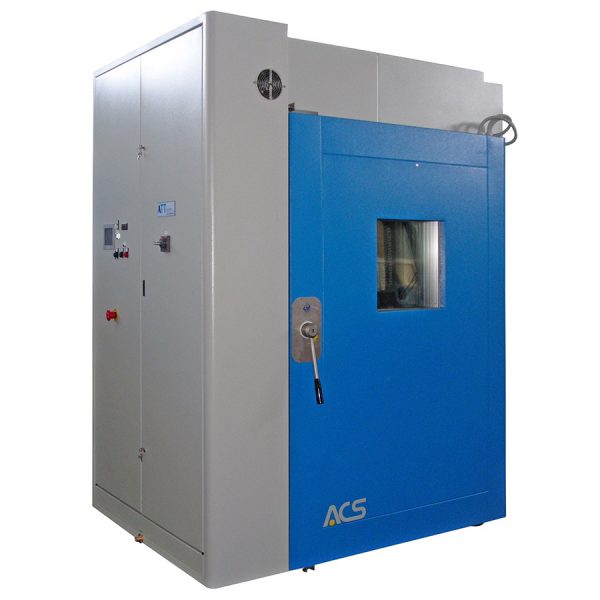

Features ACS Ultra High Stress Chambers
- Rapid thermal cycling
- Tri-axial vibration system
- Tow full opening doors for ease of product loading and fixturing
- Adjustable table height, giving reliability to be able to test larger products

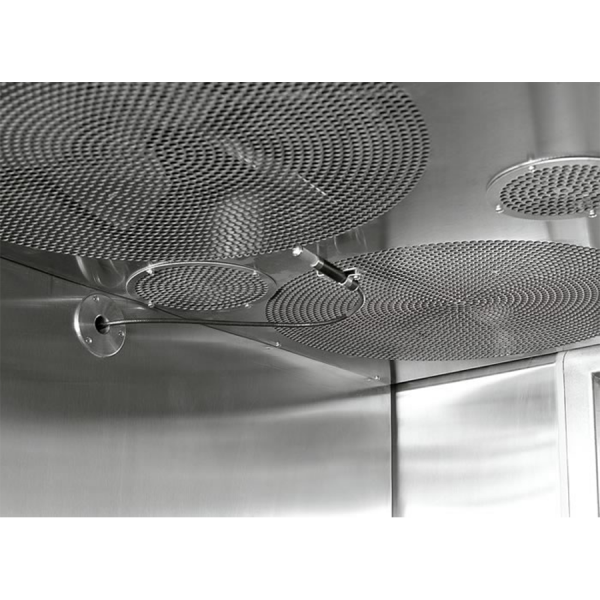

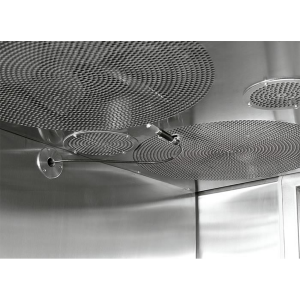

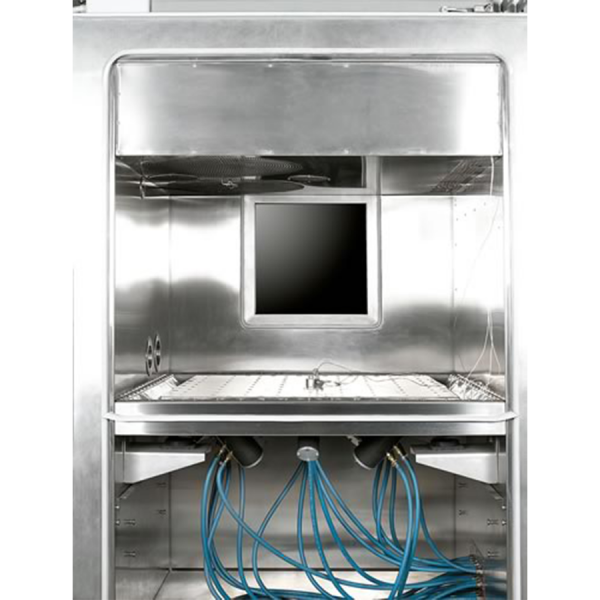

- The chamber model is equipped with optional windows and additional portholes, with cooling by LN2 expansion and heating by powerful nichrome heaters, with massive airflow which also has directional changing capability: through the air slot or through the flexible air ducts;

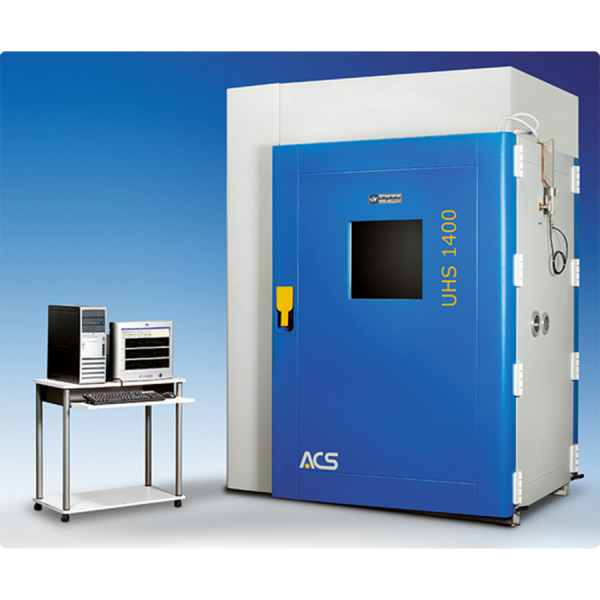

- The shaking table, with acceleration up to 100 gRMS, is powered by compressed air. In the 1400 l model, the table has adjustable height for loading unloading convenience and for different chamber useful volume. The shaker is able to deliver the vibration power on a wide frequency band thus stimulating a complete modal range and relevant possible failures;
- The PC with Winkratos SW, is the easy user interface for programming environmental testing cycles and control events, for the real-time acquisition and record of the main data;
- The electrical control panel which uses top quality components designed and assembled according to the Πnorms;
- The humidity control system (optional) which adds more effectiveness to the test giving the possibility to combine an additional important environmental parameter. The complete system is intended as a turn-key system designed and manufactured within ATT.
