Samurai Order Tracking

Category: Tags: , , , ,

This option calculates order spectra based upon FFT analysis of the time signal together with the rotational speed information. The HARMONIE family of devices (e.g. the Soundbook) offers two tachometer channels for this purpose.

Features

Features Samurai Order Tracking

  • Real-time calculation of the order spectrum
  • 10 to 400 order lines; resolution 1, 1/2, 1/4, 1/8, 1/10

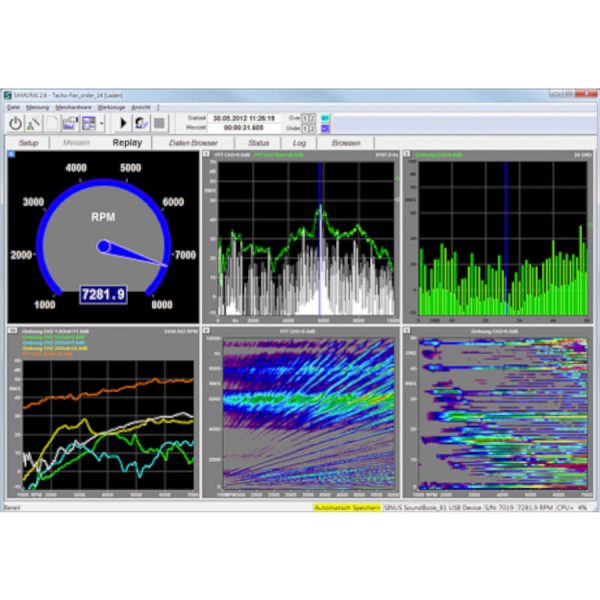

  • Display of order spectra in spectrum graphs as well as in sonograms and waterfall diagrams (against time or rotational speed); progressive display of a selected order (against time or rotational speed) in the history graph Use of two tachometer references
  • In parallel, the standard analyses in SAMURAI are available (sound level meter, 1/3 octave, FFT, rotational speed)
  • Export to Excel, TXT, UFF and NWWin

Applications

Applications Samurai Order Tracking

Order Analysis is an established technique for the investigation of vibration events and noise emissions in relation to rotating machines or equipment. In contrast to the FFT, not the level at a given frequency (FFT spectrum) but instead, the level at a multiple or fraction of the basic rotational speed (order spectrum) is of interest here. For example, this technique can be used to locate gearbox damage.

Options

Options Samurai Order Tracking

Contact us for a complete list of all our accessories and options. Telephone: +3216 23 01 03 Email: info@akron.be
