Samurai HVMA

Category: Tags: , , ,

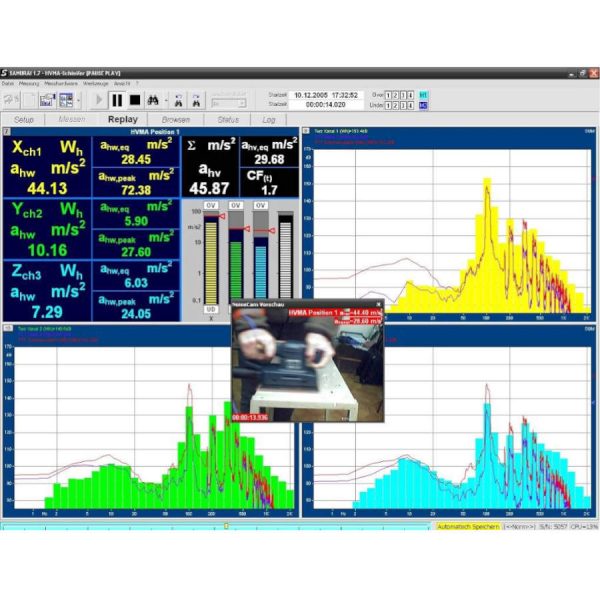

The HVMA (Human Vibration Multi-Analyzer) option allows the measurement of vibration for the purpose of evaluating the effects of the vibration on a person. Our measurement system conforms to the required characteristics and permitted margins of error for measuring systems according to DIN EN ISO 8041. This software option allows simultaneous vibration measurement in all three spatial directions. For the frequency weighting, all filter curves in the ISO 2631 and ISO 5349 standards are available. Alongside the measured values for each of the three spatial directions, the value of the result vector is displayed for hand-arm and whole-body vibration. In parallel to the above, third-octave, FFT and time signals can be displayed and saved in both weighted and unweighted forms.

Features

Features Samurai HVMA

  • 2 / 4 / 8 channels
  • Measurement ranges from 0.15 Hz
  • Frequency weightings: Wc, W d, W g, W j, W k, W b, W b_comb, W m, W db, W h, W a, W v
  • Measurement values: momentary, exposure, crest, max, min, CF, peak, VDV, MTVV
  • Vector calculation in real-time with axis weightings
  • Optional video recording (with NOISECAM VIDEO option)
  • Additionally, available: time signal, third-octave and FFT of the vibration signal as well as acoustic measurement
  • values from the SAMURAI basis functionality
  • Export to Excel, TXT, UFF and NWWin formats

Applications

Applications Samurai HVMA

The effects of vibration at the workplace (e.g. when working with hammer drills) can range from nuisance or reduced productivity up to health damage. Since July 2002, European Parliamentary Guideline 2002/44/EG regulates the minimum provisions for the protection of workers against damaging vibrational effects at the workplace. This guideline obliges the EU member states to enact laws and issue administrative regulations in order to meet these obligations. For example, in Germany, the "LärmVibrationsArbSchV" regulations came into effect on March 9th, 2007.

Options

Options Samurai HVMA

Contact us for a complete list of all our accessories and options. Telephone: +3216 23 01 03 Email: info@akron.be
