Features
Features Piezo-Resistive Uniaxial Accelerometers
- Very good frequency behavior of app. 3.5 kHz (5 %)
- Damping rates between 0.05 and 0.7
- Signal of a full bridge with power supply between 3 VDC and 10 VDC
Piezo-Resistive Uniaxial Accelerometers
With a sensor weighing only 1 gram and hardly taking up any space in a dummy or vehicle, you have numerous possibilities for the measuring technology with crash tests and sled tests. Our piezo-resistive, uniaxial accelerometers can be easily mounted on a triaxial block in order to achieve standards with it.
Accurate measuring technology made in Germany
Applications
Applications Piezo-Resistive Uniaxial Accelerometers
The low weight and the compact dimensions make our sensor-system dwarves an all-purpose tool for all sorts of tests. We assemble all required sensors, cables, and other construction parts such as Dallas ID module and shunt resistance for you, calibrate them and also take care of maintenance if desired. The more exact the measuring technology is, the more important the use of a high-quality cable is that is suited for long distances.Types
Types Piezo-Resistive Uniaxial Accelerometers

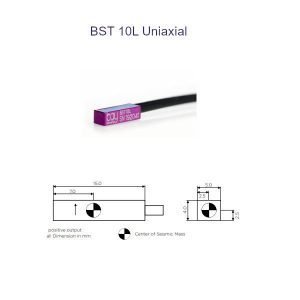

- 10L uniaxial 500g to 2000g 0,04/0,016 0,7 Aluminium -20 to 70°C
- 10C uniaxial 500g to 2000g 0,04/0,016 0,05 Aluminium -20 to 70°C

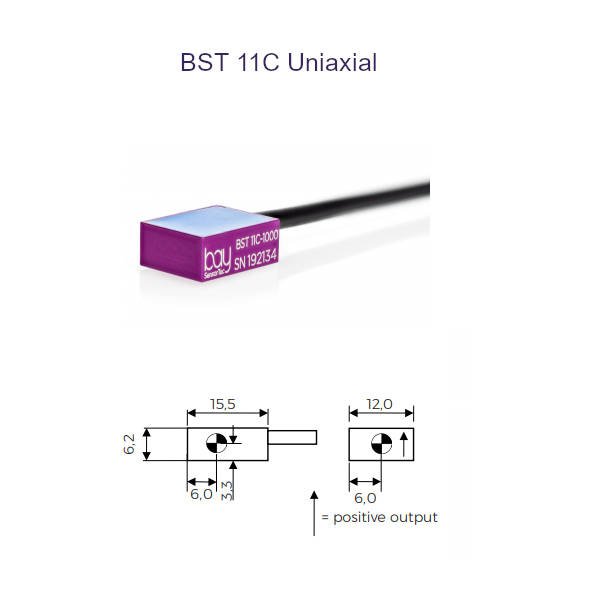

- 11C uniaxial 100g to 2000g 0,1/0,016 0,7 Aluminium -20 to 80°C
- 12C uniaxial 100g to 2000g 0,1/0,016 0,7 Aluminium -20 to 80°C
- 13C uniaxial 100g to 2000g 0,1/0,016 0,7 Aluminium -20 to 70°C
- 15C uniaxial 500 to 2000g 0,04/0,016 0.05 Aluminium -20 to 70°C

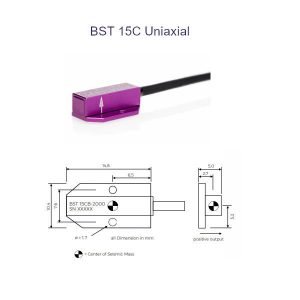

- 15CB uniaxial 500 to 2000g 0,04/0,016 0.05 Aluminium -20 to 70°C

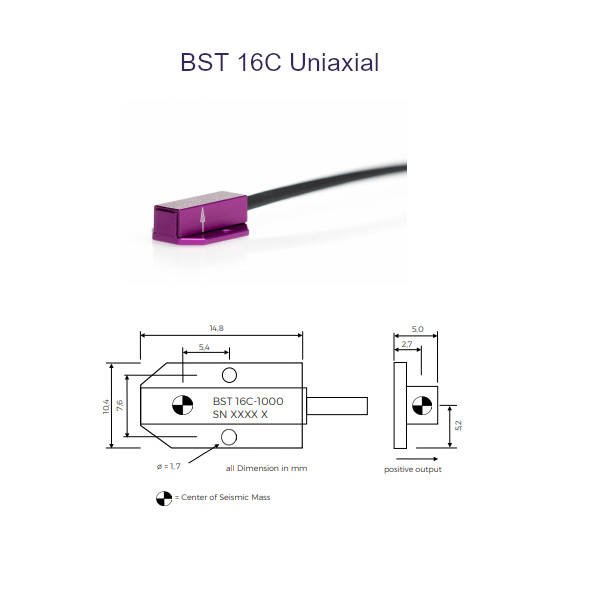

- 16C uniaxial 1000g and 2000g 0,02 0.7 Aluminium -20 to 70°C
- 17C uniaxial 100g to 2000g 0,1/0,016 0.7 Aluminium -20 to 70°C

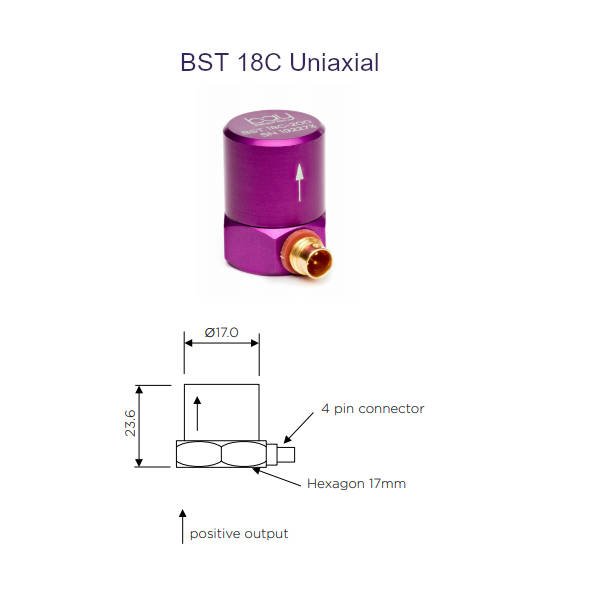

- 18C uniaxial 100g to 2000g 0,1/0,016 0,7 Aluminium -20 to 70°C
Options
Options Piezo-Resistive Uniaxial Accelerometers
Contact us for a complete list of all our accessories and options. Telephone: +3216 23 01 03 Email: info@akron.beTechnical Details
Technical Details Piezo-Resistive Uniaxial Accelerometers
BST 10C Uniaxial BST 10L Uniaxial BST 11C Uniaxial BST 12C Uniaxial BST 13C Uniaxial BST 15CB Uniaxial BST 15C Uniaxial BST 16C Uniaxial BST 17C Uniaxial BST 18C UniaxialRequest A Quote
