DJB Instruments IEP Charge Signal Conditioners

IEP Charge Signal Conditioners

Category: Tags: , , , , ,

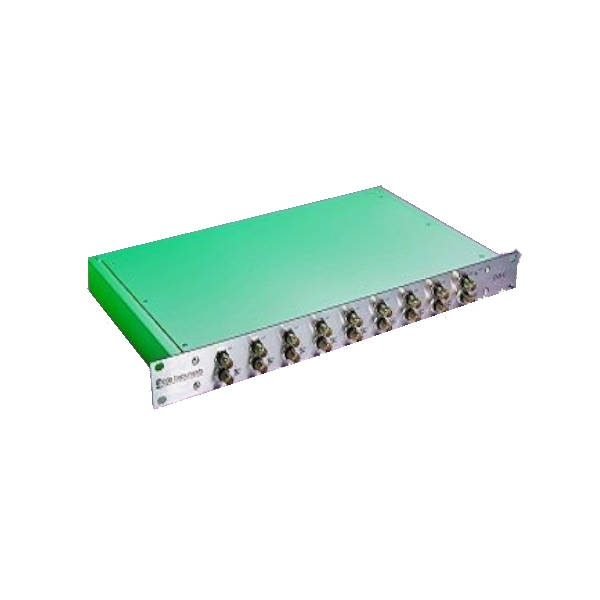

The CV9 rack-mounted unit is the perfect partner for use in industrial or laboratory applications where signal conditioning and/or charge amplification is required. Available in seven versions, the CV9 range offers maximum flexibility and return on investment. The unit uses standard rack dimensions in a compact 1U high 19” rack-mountable chassis with an elegant brushed metal front, with front-mounted BNC input and output sockets it offers quick and versatile setup.

Features

Features IEP Charge Signal Conditioners

Signal Conditioning and Amplification - Charge CV9-C: 9 channel charge amplifier with individually selectable gain (x1, x10, x100) per channel via a three-way switch. CV9-CL: 9 channel charge amplifier with individually selectable gain (x0.1, x1, x10) per channel via a three-way switch. CV9DC-C: DC powered 9 channel charge amplifier with individually selectable gain (x1, x10, x100) per channel via a three-way switch. Signal Conditioning and Amplification - IEPE CV9-V: 9 channel IEPE signal conditioner with individually selectable gain (x1, x10, x100) per channel and user-selectable 2-14mA supply. CV9DC-V: DC powered 9 channel IEPE signal conditioner with individually selectable gain (x1, x10, x100) per channel via a three-way switch and user-selectable 2-14mA supply. Signal Conditioning and Amplification - Combined Charge & IEPE CV9-CV: 9 channel source amplifier, individual channels are switchable from IEPE to charge amplification, with individually selectable gain (x1, x10, x100) per channel and user-selectable 2-14mA supply. CV9DC-CV: DC powered 9 channel sources amplifier, individual channels are switchable from IEPE to charge amplification, with individually selectable gain (x1, x10, x100) per channel and user-selectable 2-14mA supply.

Options

Options IEP Charge Signal Conditioners

Contact us for a complete list of all our accessories and options. Telephone: +3216 23 01 03 Email: info@akron.be

Technical Details

Technical Details IEP Charge Signal Conditioners

Charge Amplifier

Request a quote

Request a quote IEP Charge Signal Conditioners

    Fields marked with * are required





    Supplier

    Supplier IEP Charge Signal Conditioners

    DJB Instruments partner Akron
