Features

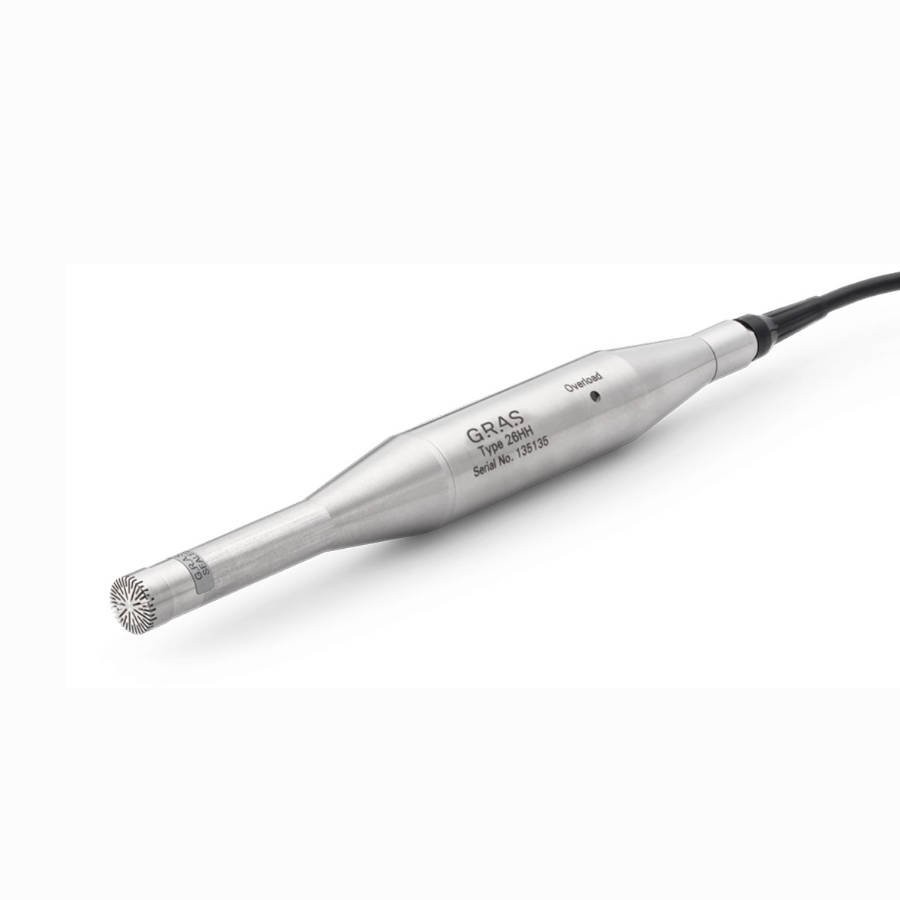

Features GRAS 40HH 1/2” Lownoise Microphone System

The 40HH comprises: a special high-sensitive 1/2" GRAS 40AH Condenser Microphone a special 1/2" GRAS 26HH Lownoise Preamplifier The preamplifier and microphone are an individually matched combination. To complete the system, a special single or 10-channel power module is required and is available, i.e. GRAS 12HF for single-channel measurements or GRAS 12HM for multi-channel measurements. The chosen power module provides all necessary voltages for powering the preamplifier(s) as well as polarizing the microphone(s). Preamplifier The GRAS 26HH Preamplifier has a built-in overload indicator (which is repeated on the chosen power supply) and a frequency correction facility for both pressure-microphone operation and free field microphone operation. Microphone The GRAS 40AH Microphone is an externally polarized microphone with a specially reduced inherent noise floor in order to achieve a high dynamic range and wide frequency range. Its diaphragm is specially tuned to yield high sensitivity coupled with low internal-noise generation. Frequency Response and Noise Floor The chosen power supply has a two-position switch for selecting which microphone operation to use, i.e.pressure or free-field. A typical free-field response for an angle of incidence of 0° is shown in the data sheet when GRAS 40HH is switched to free-field operation. Also shown is a complete low-noise measuring system, a typical noise floor in 1/3-octave bands for both the linear and A-weighted cases.
