Features

Features AcoustiCam

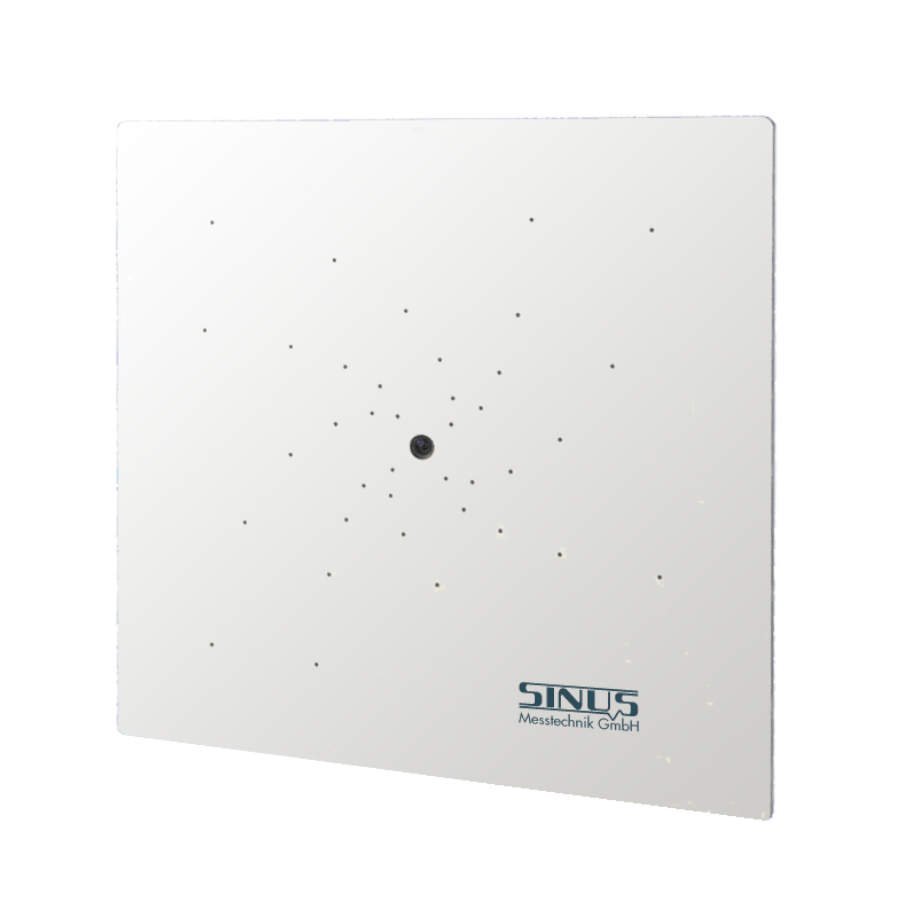

AC 100: THE HANDHELD ACOUSTIC CAMERA AC100 * COMPACT * MOBILE * ROBUST * LOW-COST * Due to its state-of-the-art microphones in MEMS technology with integrated AD converters and 51.2 kHz sampling rate, together with an integrated measurement data processing electronics in the latest DSP technology, the AC100 is now affordable for a wide range of users. The complete integration in the array, with only one USB interface for data and power supply, allows for convenient mobile use with any Windows PC. AFD7001: Compared to alternative concepts the solution we offer presents various benefits:

• The data acquisition hardware may be used for other measurements as well.
• The system allows uninterrupted data capturing on HDD with 32 channels for 8 hours.
• The measuring hardware may be fully supplied from buffer batteries enabling mains-independent operation.
• The system allows variable array geometries to match your requirements.
• The low-cost solution features high accuracy. Results:
• Sound pressure distribution as a colored map superimposed onto a photograph
• Triggered time-domain data on all channels
• Transmission functions between all channels
• Listening-in at one point of the image
